- Laser-cut joints, automatic welding and polished.

- Double walled lid balanced by means of a hinge with front handle, with diagonal opening to 75° which allows the lid to be kept open in any position.

- Well stamped into the surface top by robotic welding, manufactured in AISI-304 stainless steel, with the bottom of the well in AISI-316L stainless steel.

- Well filling with hot or cold water by electrovalve, activated with a single switch located on the front panel as previous page.

- Well emptying by 2” safety valve with handle in athermic material and safe and effortless handling.

- Robust and reliable filter for draining the well manufactured in AISI-304 stainless steel. Easily extractable.

- Controls with protective base and system against water infiltration.

- High temperature enamelled cast iron flue protector.

- Access to the components from the front.

- Machines with IPX5 grade water protection. Indirectly heated models – bain marie

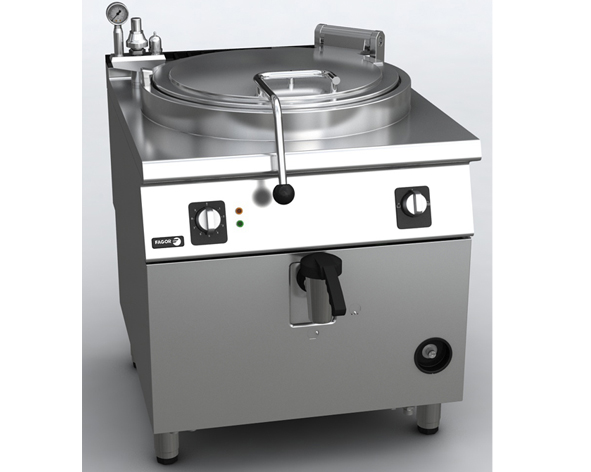

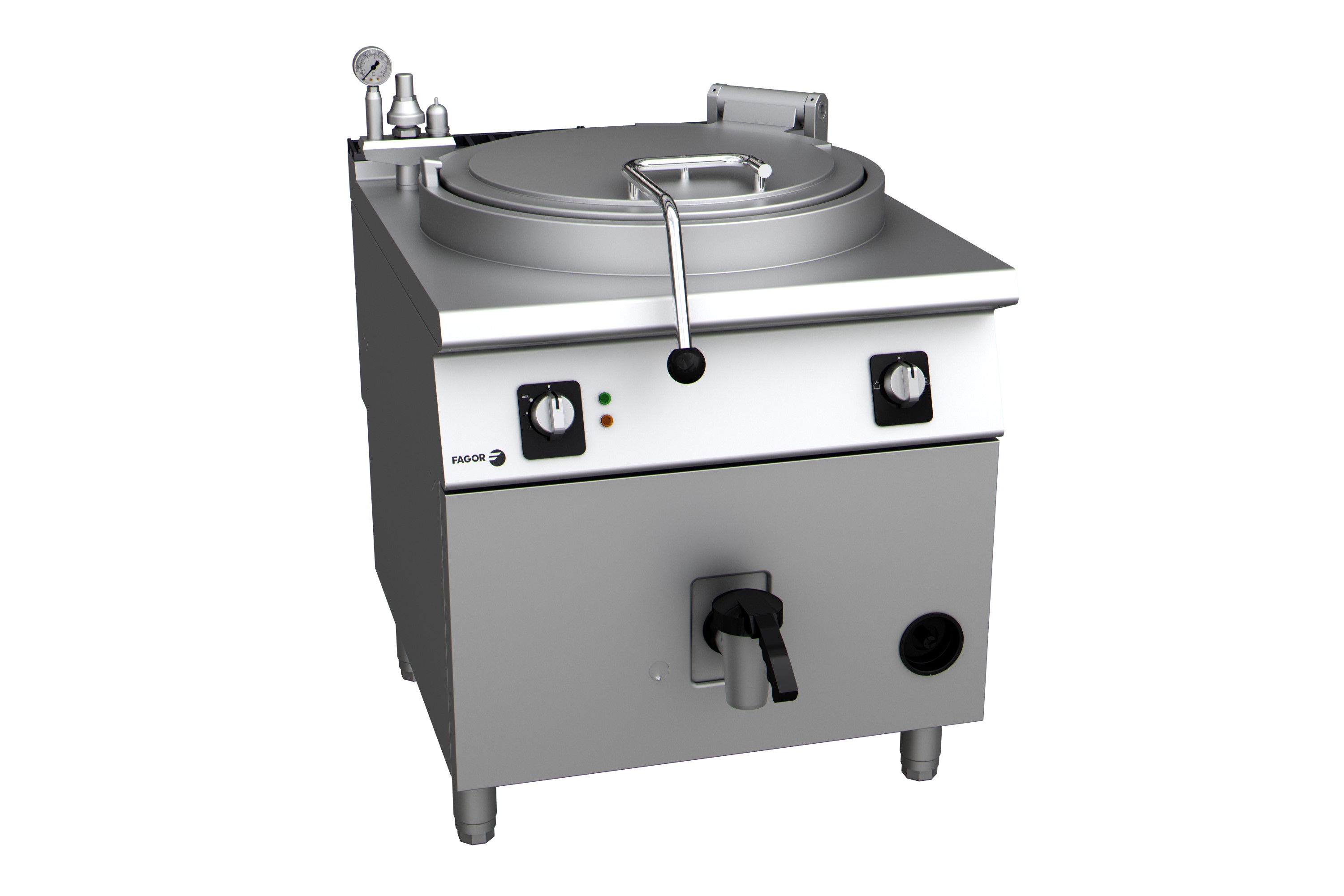

- Bain marie chamber around the well, with automatic filling system when the machine is connected.

- Automatic chamber level control with quadruple security: pressure switch to control the pressure in the chamber, overpressure security valve, thermostat to limit overheating in the chamber and pressure gauge incorporated into the surface top.

- Automatic flushing of the chamber.

- Heating at the bottom of the pan acts on the water in the surrounding chamber, meaning that the saturated steam generated at a temperature of 107 °C heats the bottom and sides of the well in a uniform manner. The temperature reached is lower than that obtained with direct heating.

- Stamped pan floor to avoid deformations.

- Indicator light to show when the machine is connected and when it is heating.

GAS MODELS

- Group of optimised combustion stainless steel tubular burners, controlled by energy regulator and by pressure switch.

- Control by energy regulator and by pressure switch, permitting lower water and energy consumption.

- Ignition of group of burners by spark train.
